It’s a step-by-step Ship deployment guide. We will use Digital Ocean Managed Kubernetes, Container Registry, Managed PostgreSQL, GitHub Actions for automated deployment, and CloudFlare for DNS and SSL configuration. You need to create GitHub, CloudFlare and Digital Ocean accounts and install the next tools on your machine before starting:

kubectl - CLI tool for accessing Kubernetes cluster;
kubectx - CLI tool for easier switching between Kubernetes contexts;
helm - CLI tool for managing Kubernetes deployments;
k8sec - CLI tool for managing Kubernetes Secrets easily;

How to install k8sec on Linux?

Download k8sec tar.gz, then do:

chmod +x k8sec

sudo cp k8sec /usr/local/bin/

k8sec --help

Try the next commands to ensure that everything is installed correctly:

kubectl

kubectx

helm

k8sec

Also, you need git and Node.js if you already haven’t.

Setup project

First, initialize your project. Type npx create-ship-app@latest in the terminal then choose Digital Ocean Managed Kubernetes deployment type.

npx @paralect/ship init

You will have next project structure.

/my-ship-app
  /.github
  /apps
    /api
    /web
  /deploy
  ...

Container registry

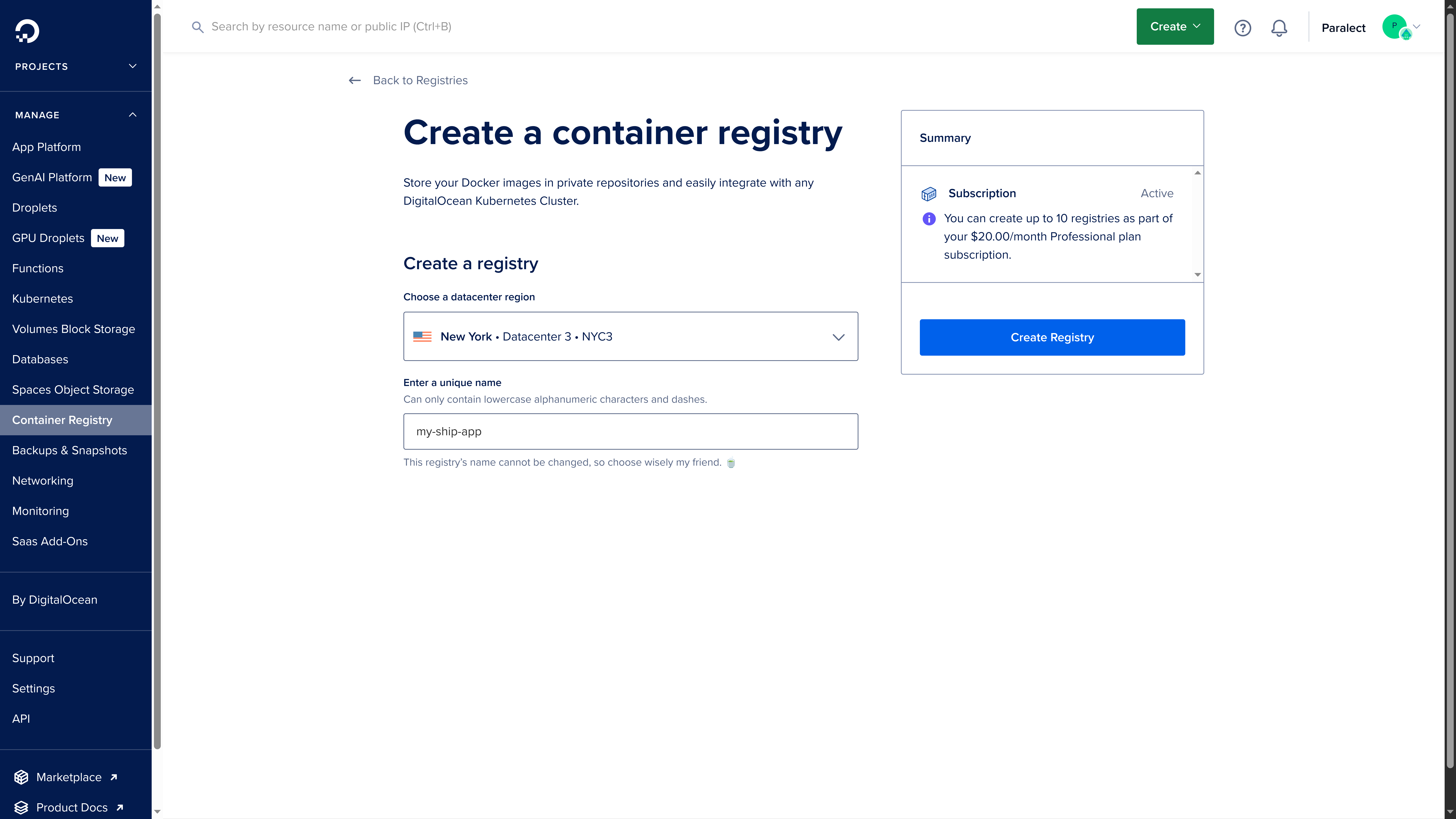

You need to create Container Registry for storing Docker images. The deployment script will upload images to Container Registry during the build step, and Kubernetes will automatically pull these images from Container Registry to run a new version of service during the deployment step. Name container registry as the name of organization, which usually is equals to the name of the project: my-ship-app.

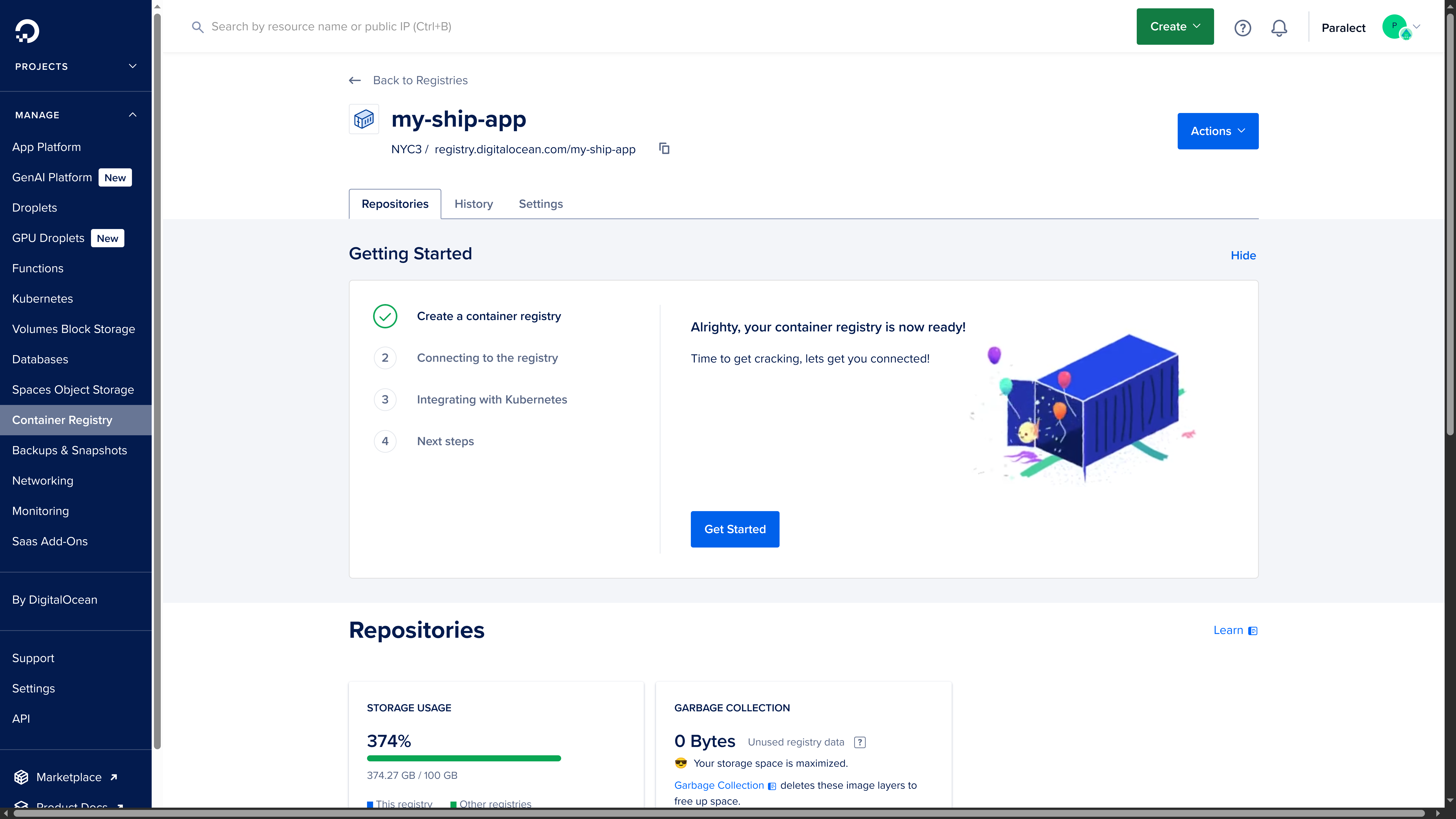

After some time, you will get registry endpoint.

registry.digitalocean.com/my-ship-app is registry endpoint, where my-ship-app is registry name. Docker images for each service are stored in separate repository. In Digital Ocean repositories are created automatically when something is uploaded by specific paths. During deployment process script will automatically create paths to repositories in next format:

API - registry.digitalocean.com/my-ship-app/api;
Scheduler - registry.digitalocean.com/my-ship-app/scheduler;
Migrator - registry.digitalocean.com/my-ship-app/migrator;
Web - registry.digitalocean.com/my-ship-app/web;

Images for all environments will be uploaded to the same repository for each service.

Kubernetes cluster

Now let’s create Managed Kubernetes cluster.

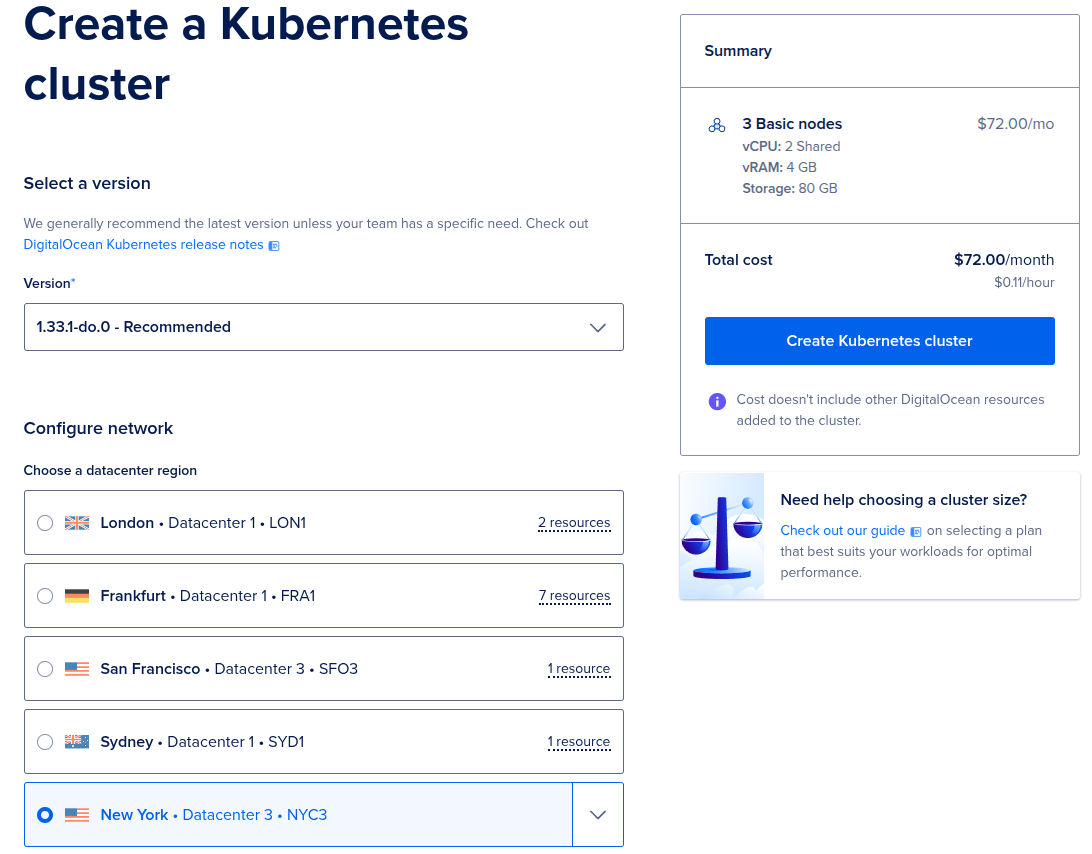

Select a region

Navigate to the cluster creation page here

We recommend you to create a cluster in the region where your end-users are located, it will reduce response time to incoming requests to all services.

Also, if your cluster will be located in one region with a Container Registry deployment process will be faster. You can find more information about regions here.

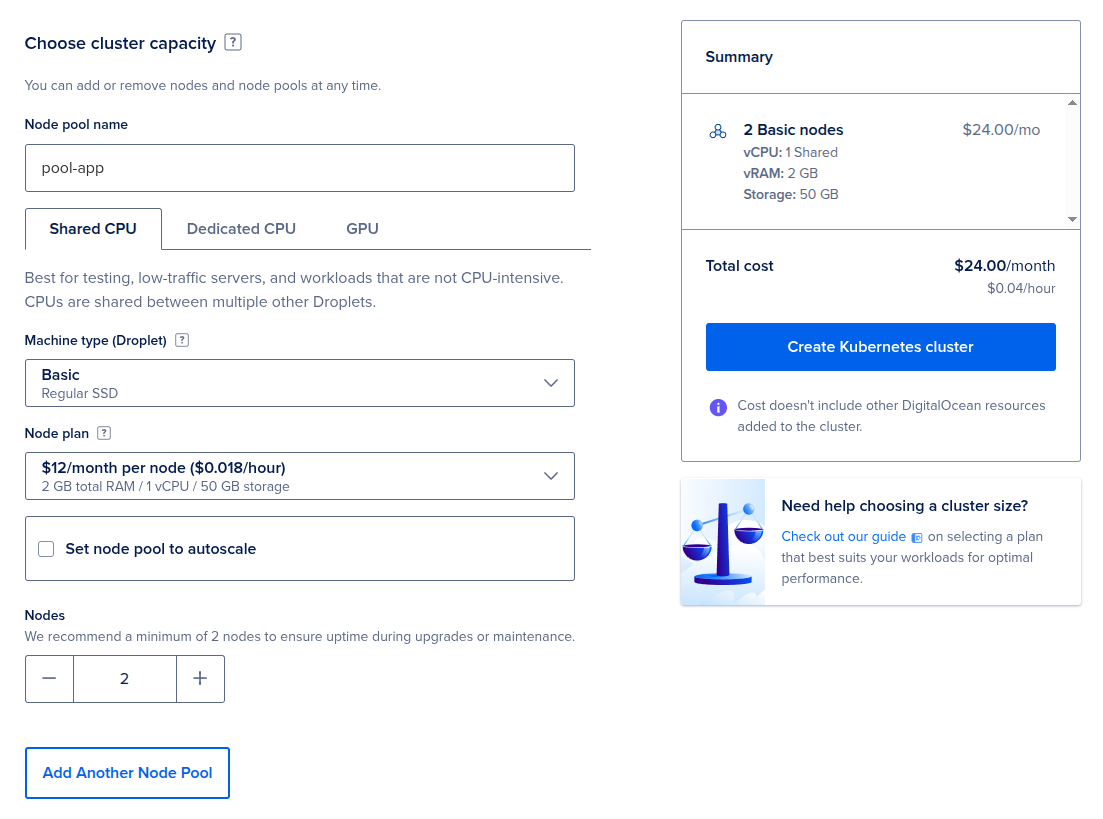

Set Node pool name

Set Node pool name (e.g. pool-app) and configure Nodes. Digital Ocean recommends creating at least 2 nodes for the production environment. These settings will have an impact on the price of the cluster.

Set cluster name

Set cluster name (e.g. my-ship-app). A common practice is to use the project name for it.

Review and Create

Click on Create Kubernetes Cluster button to create a cluster and wait for cluster to be ready.

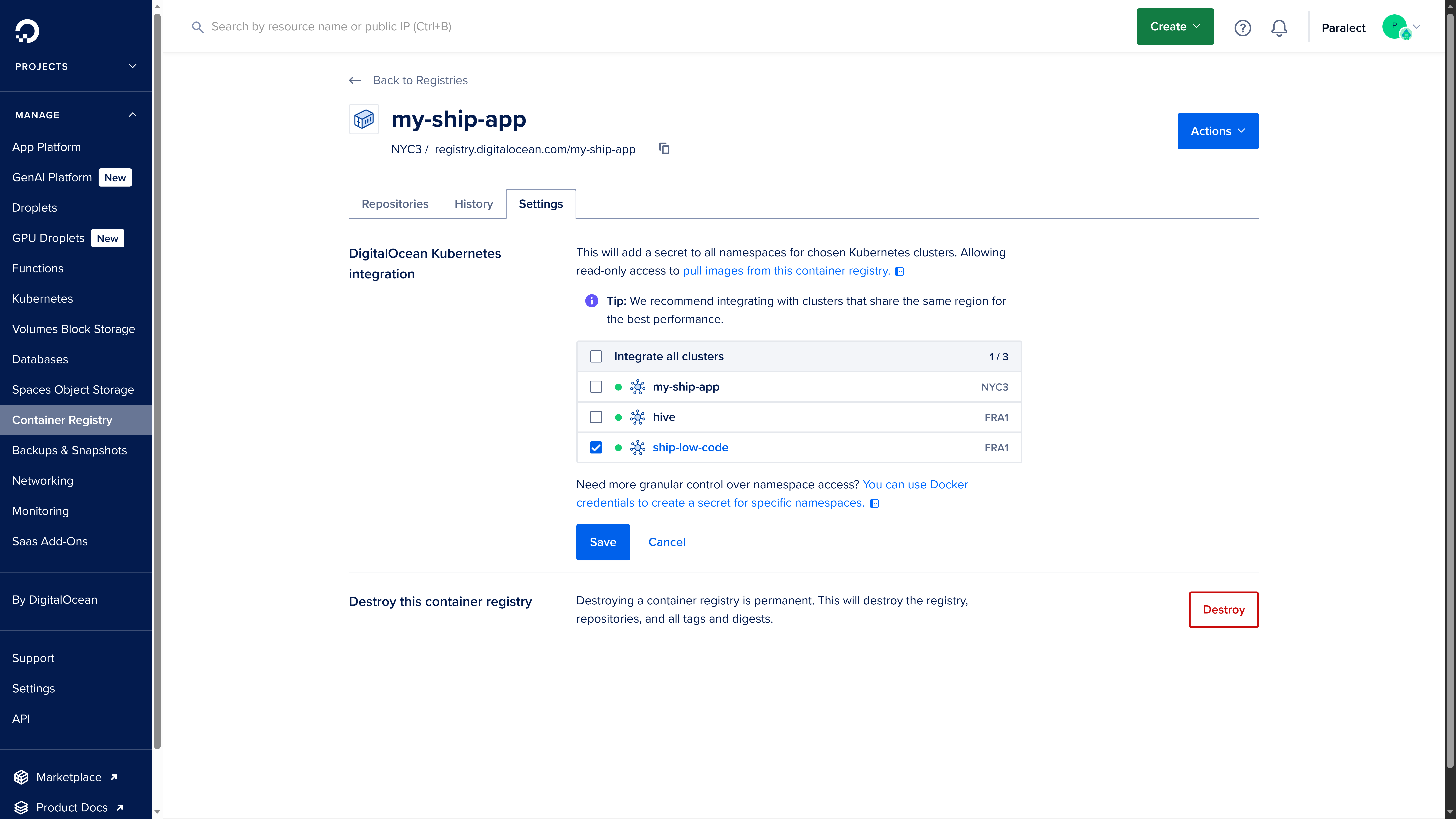

Integrate with created Container Registry

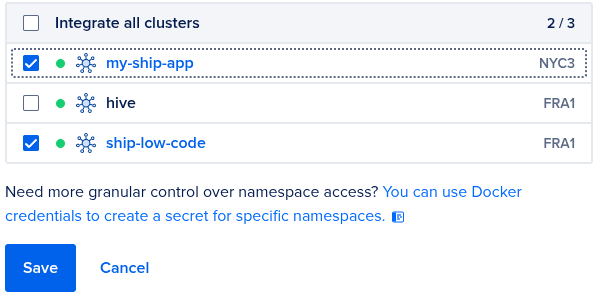

After cluster is created, go to the Container Registry’s settings and find DigitalOcean Kubernetes integration section.

You need to select your newly created my-ship-app cluster.

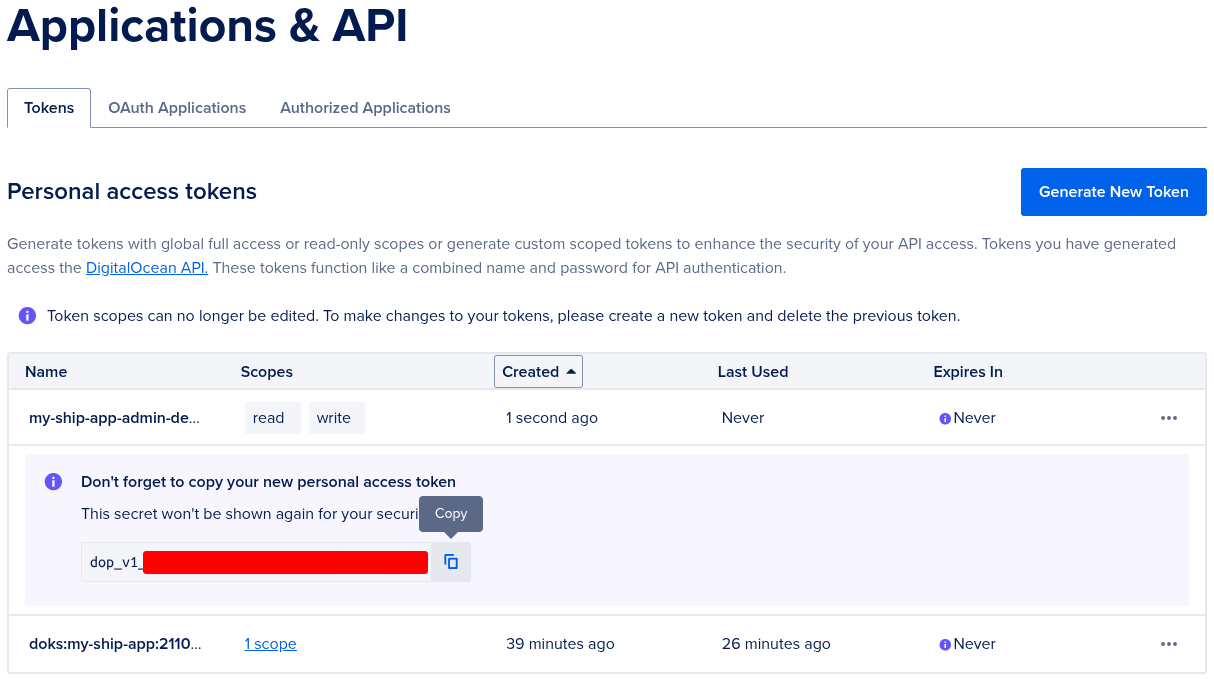

Personal access token

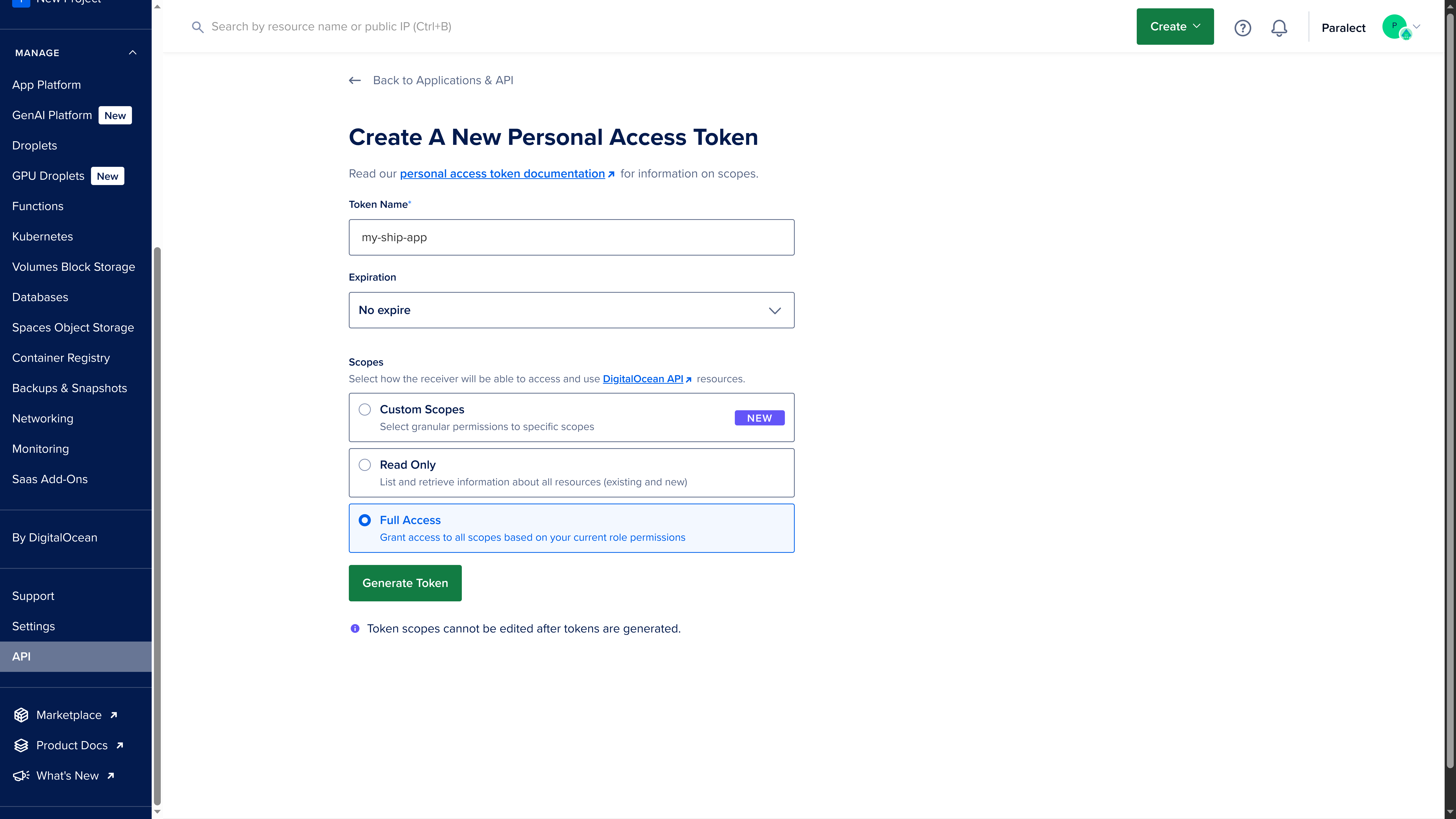

To upload docker images in Container Registry and pull them after from cluster we need Digital Ocean Personal Access Token. When you created cluster - one with Read Only scope was automatically created. But we need to generate a new one with:

Name (e.g. my-ship-app-admin-deploy)
Full Access scope
No expiration

You cannot change scope of already generated token.

We will need this token soon, so don’t close this page yet.

Be very careful with Personal Access Token, if someone steals it he will get access to all resources from your Digital Ocean account.

Accessing cluster from a local machine

Download cluster's kubeconfig

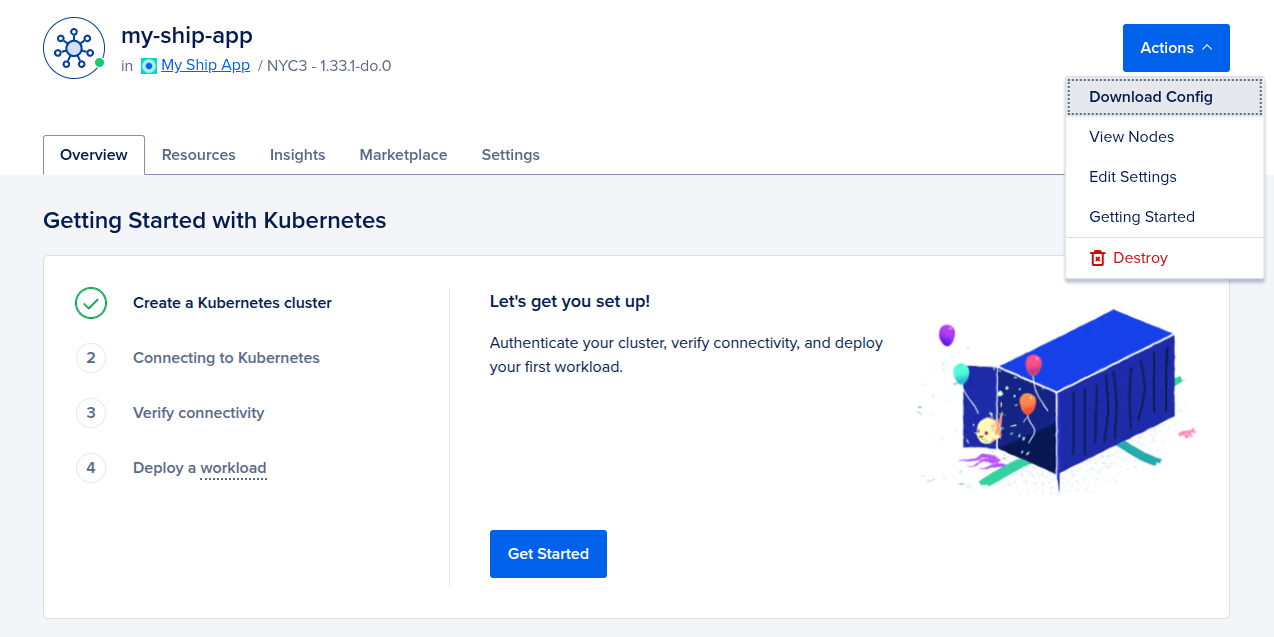

Download cluster’s kubeconfig, this file includes information for accessing cluster through kubectl.

Expected structure of downloaded kubeconfig

my-ship-app-kubeconfig.yaml

apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: ...
    server: https://...
  name: do-nyc3-my-ship-app
contexts:
- context:
    cluster: do-nyc3-my-ship-app
    user: do-nyc3-my-ship-app-admin
  name: do-nyc3-my-ship-app
current-context: do-nyc3-my-ship-app
kind: Config
preferences: {}
users:
- name: do-nyc3-my-ship-app-admin
  user:
    token: dop_v1_...

And replace initial Read only token with new Full access token from Personal access token section.

my-ship-app-kubeconfig.yaml

apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: ...
    server: https://...
  name: do-nyc3-my-ship-app
contexts:
- context:
    cluster: do-nyc3-my-ship-app
    user: do-nyc3-my-ship-app-admin
  name: do-nyc3-my-ship-app
current-context: do-nyc3-my-ship-app
kind: Config
preferences: {}
users:
- name: do-nyc3-my-ship-app-admin
  user:
    # replace this token for full access token
    token: dop_v1_...

Add cluster, context and user to kubeconfig

Kubeconfig files contain information about several clusters, you have your own on the local machine, it should have been created after kubectl installation.

You need to add information about the new cluster to your kubeconfig. Find .kube/config file on your machine, and add cluster, context and user values from my-ship-app-kubeconfig.yaml.

~/.kube/config

apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: ...
    server: https://...
  name: some-cluster
# your new cluster from my-ship-app-kubeconfig.yaml goes here
- cluster:
    certificate-authority-data: ...
    server: https://...
  name: do-nyc3-my-ship-app
contexts:
- context:
    cluster: some-cluster
    user: some-user
  name: some-cluster
# your new context from my-ship-app-kubeconfig.yaml goes here
- context:
    cluster: do-nyc3-my-ship-app
    user: do-nyc3-my-ship-app-admin
  name: do-nyc3-my-ship-app
current-context: some-cluster
kind: Config
preferences: {}
users:
- name: some-user
  user:
    token: dop_v1_...
# your new user from my-ship-app-kubeconfig.yaml goes here
- name: do-nyc3-my-ship-app-admin
  user:
    token: dop_v1_...

Switch to cluster context

Execute kubectx in your terminal and select your cluster from the list.

kubectx

You will see the list of available clusters.

some-cluster
do-nyc3-my-ship-app

Select your cluster from the list:

kubectx do-nyc3-my-ship-app

Verify cluster access

Check the installed pods by running:

kubectl get pods -A

You should see a list of system pods in your cluster:

NAMESPACE     NAME                            READY   STATUS    RESTARTS   AGE
kube-system   cilium-tb8td                    1/1     Running   0          18m
kube-system   cilium-x5w8n                    1/1     Running   0          19m
kube-system   coredns-5679ffb5c8-b7dzj        1/1     Running   0          17m
kube-system   coredns-5679ffb5c8-d465r        1/1     Running   0          17m
kube-system   cpc-bridge-proxy-ebpf-2gzfr     1/1     Running   0          17m
kube-system   cpc-bridge-proxy-ebpf-jknzh     1/1     Running   0          17m
kube-system   csi-do-node-jcqd2               2/2     Running   0          17m
kube-system   csi-do-node-rpx6q               2/2     Running   0          17m
kube-system   do-node-agent-ldhxq             1/1     Running   0          17m
kube-system   do-node-agent-pdksz             1/1     Running   0          17m
kube-system   hubble-relay-66f54dcd57-l7xjb   1/1     Running   0          21m
kube-system   hubble-ui-785bdbc45b-6xd57      2/2     Running   0          18m
kube-system   konnectivity-agent-h79mt        1/1     Running   0          17m
kube-system   konnectivity-agent-hvv67        1/1     Running   0          17m

Ingress NGINX Controller

ingress-nginx is an Ingress controller for Kubernetes using NGINX as a reverse proxy and load balancer.

Learn more about ingress-nginx functionality in the official documentation.

Navigate to dependencies directory

Change to the deploy/dependencies directory in your terminal.

Configure Helm Values (Optional)

This step is required only if you specified a custom node pool name in your Digital Ocean Kubernetes cluster.If you did, update the doks.digitalocean.com/node-pool value in values.yaml.gotmpl:

deploy/dependencies/ingress-nginx/values.yaml.gotmpl

controller:
  publishService:
    enabled: true
  nodeSelector:
    doks.digitalocean.com/node-pool: pool-app

rbac:
  create: true

defaultBackend:
  enabled: false

Install dependencies

Install helm dependencies using helmfile:

helmfile deps

Review and apply changes

Preview the changes first:

helmfile diff

If the preview looks correct, apply the configuration:

helmfile apply

DNS and SSL

Get Load Balancer Address

After deploying ingress-nginx, retrieve the Load Balancer’s external ip:

kubectl get svc ingress-nginx-controller -n ingress-nginx

Copy the value from the EXTERNAL-IP column.

NAME                       TYPE           CLUSTER-IP       EXTERNAL-IP      PORT(S)                      AGE
ingress-nginx-controller   LoadBalancer   10.245.201.160   138.68.124.241   80:30186/TCP,443:32656/TCP   28m

It take some time while ingress-nginx will configure everything and provide EXTERNAL-IP.

Domain Naming Convention

You can follow this recommended naming pattern for different environments:

Environment	API Domain	Web Domain
Production	api.ship.com	app.ship.com
Staging	api.staging.ship.com	app.staging.ship.com

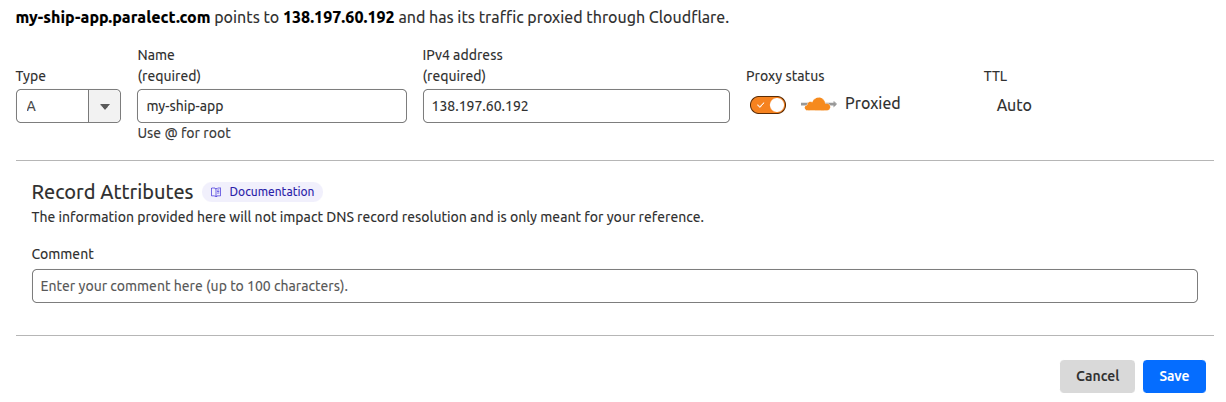

Configure DNS in Cloudflare

First, ensure you have a domain in Cloudflare. You can either:

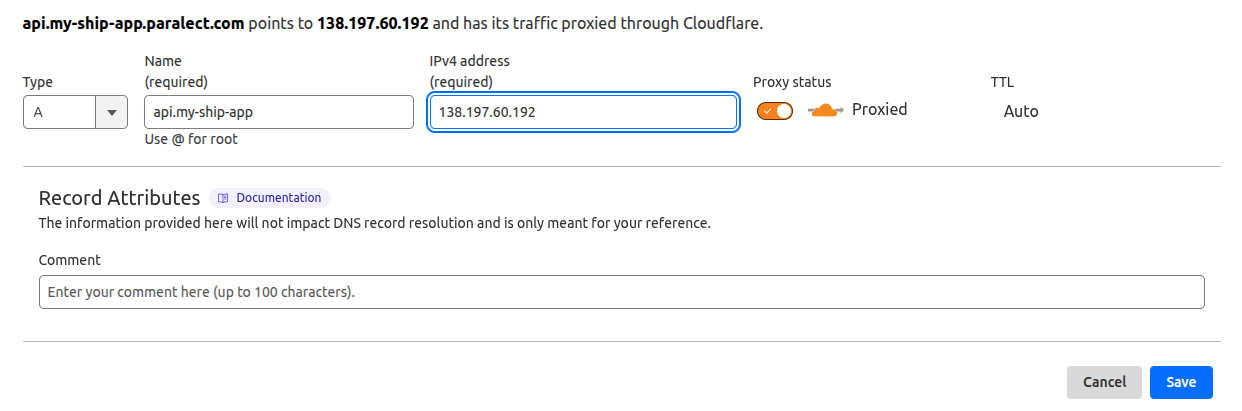

In the Cloudflare DNS tab, create 2 A records:

One for Web interface
One for API endpoint

Both should point to your Load Balancer’s external hostname.Enable the Proxied option to:

Route traffic through Cloudflare
Generate SSL certificates automatically

Cloudflare’s free Universal SSL certificates only cover the apex domain and one subdomain level. For multiple subdomain levels, you’ll need an Advanced Certificate.

Update Configuration Files

Update your domain settings in the appropriate environment configuration files:For API service:

service: api
port: 3001
domain: api.my-ship-app.paralect.com

service: api
port: 3001
domain: api.my-ship-app.staging.paralect.com

For Web service:

service: web
port: 3002
domain: my-ship-app.paralect.com

service: web
port: 3002
domain: my-ship-app.staging.paralect.com

Managed PostgreSQL

A managed PostgreSQL service provides automated backups, scaling, and security so you don’t have to operate a database yourself. The API connects through a single DATABASE_URL connection string, and the Migrator applies Drizzle migrations against it before the API and Scheduler roll out.

Create the Database

Choose a major version

Use a currently supported PostgreSQL major version (16 or newer). Ship’s Drizzle migrations target standard PostgreSQL and have no version-specific requirements.

Name your databases

Use environment-specific database names so staging and production never share data, for example api-staging and api-production.

Configure Access

Create a database user

Create a dedicated user for the API with read and write access to its database. Use environment-specific names (e.g. api-production, api-staging) and generate a strong password.

Give each environment its own user and database. Never reuse production credentials in staging or in documentation.

Get the Connection String

Copy connection details

From your database dashboard, copy the host, port, user, password, and database name, or the ready-made connection string if the provider gives you one.

Build the DATABASE_URL

The API reads a single DATABASE_URL connection string. Compose it in the standard PostgreSQL format:

postgresql://api-production:your-password@db-host.example.com:5432/api-production?sslmode=require

Managed providers require TLS. Keep sslmode=require (or stricter) in the connection string for staging and production.

Save the connection string

Store DATABASE_URL securely — you’ll add it to the API secret during environment configuration. The Migrator and API both read it from the same secret.

Before deploying to production, confirm automated backups are enabled in your provider’s console so you can recover data if needed.

Environment variables

Kubernetes applications require proper environment variable configuration for both API and Web components. This section covers how to set up and manage environment variables securely using Kubernetes secrets and configuration files.

API Environment Variables

For the API deployment, you need to set up environment variables using Kubernetes secrets to securely manage sensitive configuration data.

Secrets in Kubernetes are used to store sensitive information, such as passwords, API tokens, and keys. They are encoded in Base64 format to provide a level of security. These can be mounted into containers as data volumes or used as environment variables.

Before deploying the app, make sure all necessary variables from the API config are exist. Here are the minimal set of required variables:

Name	Description	Example value
`APP_ENV`	Application environment	`production`
`DATABASE_URL`	PostgreSQL connection string	`postgresql://<username>:<password>@db-host:5432/api-production?sslmode=require`
`API_URL`	API domain URL	`https://api.my-ship-app.paralect.com`
`WEB_URL`	Web app domain URL	`https://my-ship-app.paralect.com`

Environment Variable Details

APP_ENV

Specifies the application environment (development, staging, production). This controls logging levels, debugging features, error reporting, and other environment-specific behaviors. The API uses this to determine which configuration settings to load.

DATABASE_URL

PostgreSQL connection string including authentication credentials, host, port, and database name. This is the primary database connection for the API and the Migrator. Format: postgresql://username:password@host:5432/database?sslmode=require. Each environment should use a separate database or at minimum separate credentials. Managed providers require TLS, so keep sslmode=require in staging and production.

API_URL

The fully qualified domain name where the API will be accessible. This must be a valid HTTPS URL and should match your Kubernetes ingress configuration. Used for CORS settings and internal service communication.

WEB_URL

The fully qualified domain name where the web application will be accessible. Used for CORS configuration, redirect URLs, email templates, and social sharing metadata. Must be a valid HTTPS URL.

Setting up Kubernetes Secrets

Create namespaces and secret objects

Create Kubernetes namespaces and secret objects for staging and production environments:

kubectl create namespace staging
kubectl create secret generic api-staging-secret -n staging
kubectl create namespace production
kubectl create secret generic api-production-secret -n production

Initialize secret storage

First, create an APP_ENV variable to initialize secret storage for k8sec:

k8sec set api-production-secret APP_ENV=production -n production

k8sec set api-staging-secret APP_ENV=staging -n staging

Verify secret creation

Run the following command to check the created secret:

k8sec list api-production-secret -n production

k8sec list api-staging-secret -n staging

Prepare environment file

Create a .env.production file with all required variables:

APP_ENV=production
DATABASE_URL=postgresql://username:password@db-host:5432/api-production?sslmode=require
API_URL=https://api.my-ship-app.paralect.com
WEB_URL=https://my-ship-app.paralect.com

APP_ENV=staging
DATABASE_URL=postgresql://username:password@db-host:5432/api-staging?sslmode=require
API_URL=https://api.my-ship-app.staging.paralect.com
WEB_URL=https://my-ship-app.staging.paralect.com

Replace all example values with your actual configuration. Never use production secrets in documentation or version control.

Import secrets to Kubernetes

Import secrets from the .env file to Kubernetes secret using k8sec:

k8sec load -f .env.production api-production-secret -n production

k8sec load -f .env.staging api-staging-secret -n staging

After updating environment variables, you must initiate a new deployment for changes to take effect. Kubernetes pods cache variable values during startup, requiring a pod restart or rolling update to apply changes.

Web Environment Variables

The web application is a TanStack Start app built with Vite. Its environment variables are embedded at build time and made available in the browser through import.meta.env. Only variables prefixed with VITE_ are exposed to the client. Unlike API secrets, these variables are stored directly in the GitHub repository.

Why Web Environment Variables Are Safe in Git: Web environment variables (prefixed with VITE_) contain only public configuration like URLs and API endpoints. They don’t include sensitive data like passwords or API keys, making them safe to store in version control. These values are already exposed to users in the browser, so repository storage doesn’t create additional security risks.

Security Notice: Never store sensitive information (passwords, API keys, secrets) in web environment files as they will be accessible on the client side. Only use public configuration values that are safe to expose to end users.

Configuration Files

Web environment variables are stored in separate files for each deployment environment:

VITE_APP_ENV=production
VITE_API_URL=https://api.my-ship-app.paralect.com
VITE_WS_URL=https://api.my-ship-app.paralect.com
VITE_WEB_URL=https://my-ship-app.paralect.com

VITE_APP_ENV=staging
VITE_API_URL=https://api.my-ship-app.staging.paralect.com
VITE_WS_URL=https://api.my-ship-app.staging.paralect.com
VITE_WEB_URL=https://my-ship-app.staging.paralect.com

Environment Variables Reference

Variable	Description	Example
`VITE_APP_ENV`	Web application environment	`production`
`VITE_API_URL`	Base URL for API requests	`https://api.my-ship-app.paralect.com`
`VITE_WS_URL`	WebSocket server URL for real-time	`https://api.my-ship-app.paralect.com`
`VITE_WEB_URL`	App’s own URL for redirects/metadata	`https://my-ship-app.paralect.com`

Best Practice: Keep web environment files in your repository and ensure all values are non-sensitive. If you need to reference sensitive data from the frontend, create a secure API endpoint that returns the necessary information after proper authentication.

Setting up GitHub Actions CI/CD

To automate deployment through Github Actions you need to configure Github Secrets inside workflow files.

Configuring GitHub Actions secrets and variables

Before starting, make sure you have created a GitHub repository for your project.

GitHub Secrets and variables allow you to manage reusable configuration data. Secrets are encrypted and are used for sensitive data. Learn more about encrypted secrets. Variables are shown as plain text and are used for non-sensitive data. Learn more about variables.

The deployment will be triggered on each commit:

Commits to main branch → deploy to staging environment
Commits to production branch → deploy to production environment

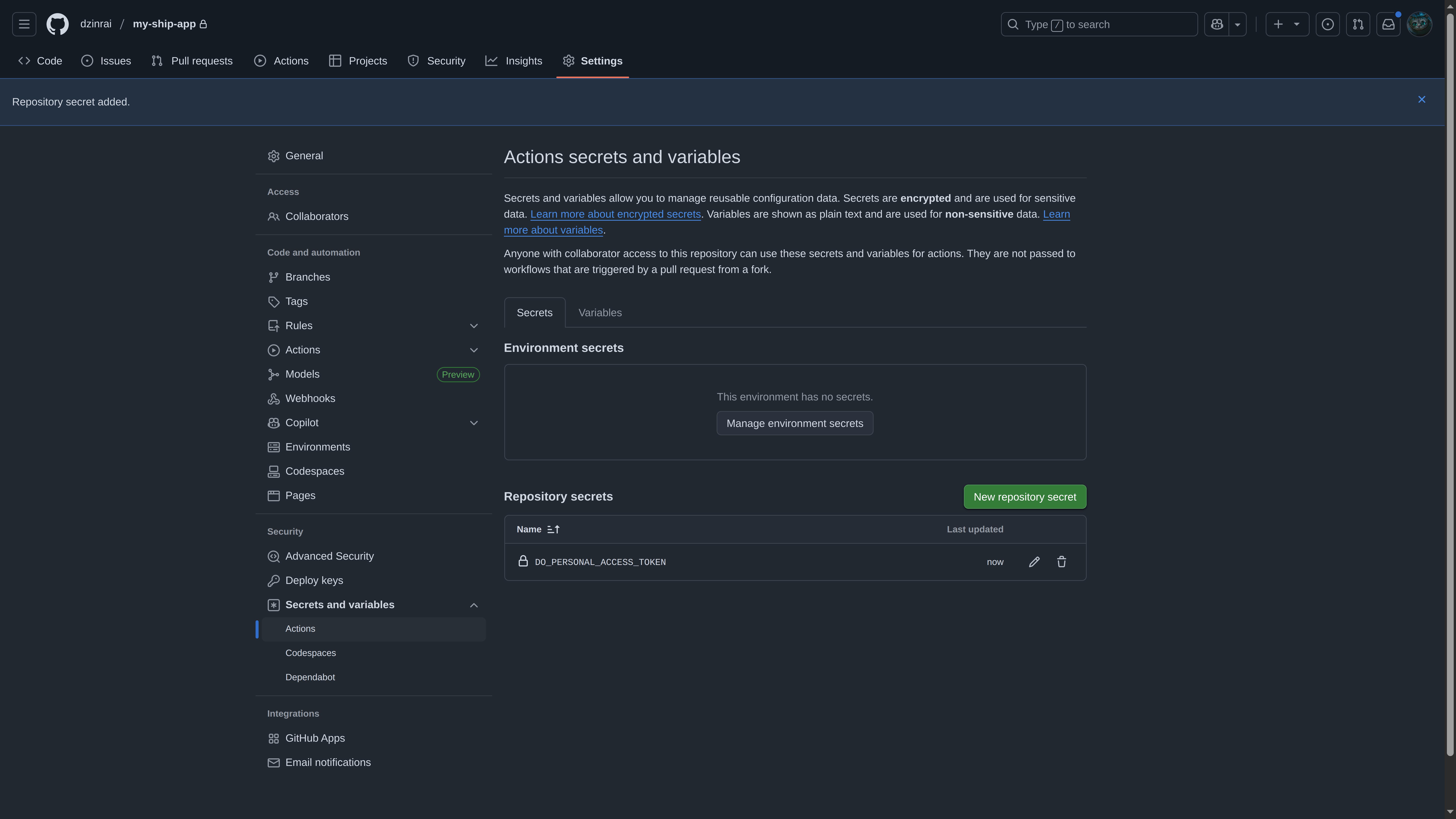

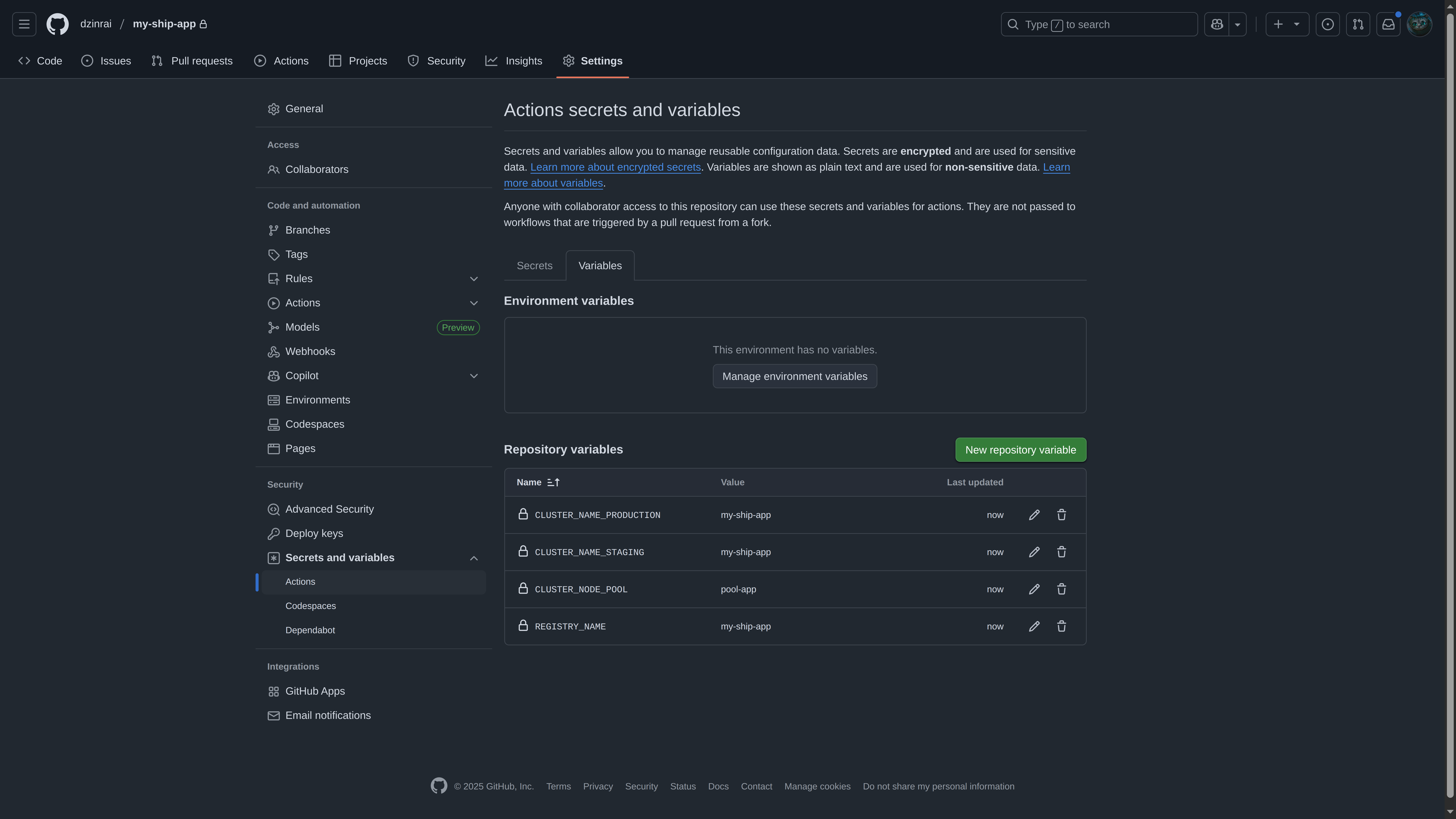

Configure the following secrets and variables in your GitHub repository:

Name	Type	Description
DO_PERSONAL_ACCESS_TOKEN	secret	The secret access user created for CI/CD. This allows GitHub Actions to authenticate with DO services
CLUSTER_NAME_STAGING	variable	Name of the staging cluster. (our case: `my-ship-app`)
CLUSTER_NAME_PRODUCTION	variable	Name of the production cluster. (our case: `my-ship-app`, same as staging cluster since we have only one cluster)
CLUSTER_NODE_POOL	variable	Name of the node pool. (our case: `pool-app`)
REGISTRY_NAME	variable	Name of the Digital Ocean Container Registry. (our case: `my-ship-app`)

Never commit sensitive credentials directly to your repository.
Always use GitHub Secrets for sensitive information like DO keys.

Variables (unlike secrets) are visible in logs and can be used for non-sensitive configuration values that may need to be referenced or modified.

We set up DO_PERSONAL_ACCESS_TOKEN to be universal for both production and staging environments with Full access scope.

Your KUBE_CONFIG_PRODUCTION and KUBE_CONFIG_STAGING will be the same if you have only one cluster for both environments.

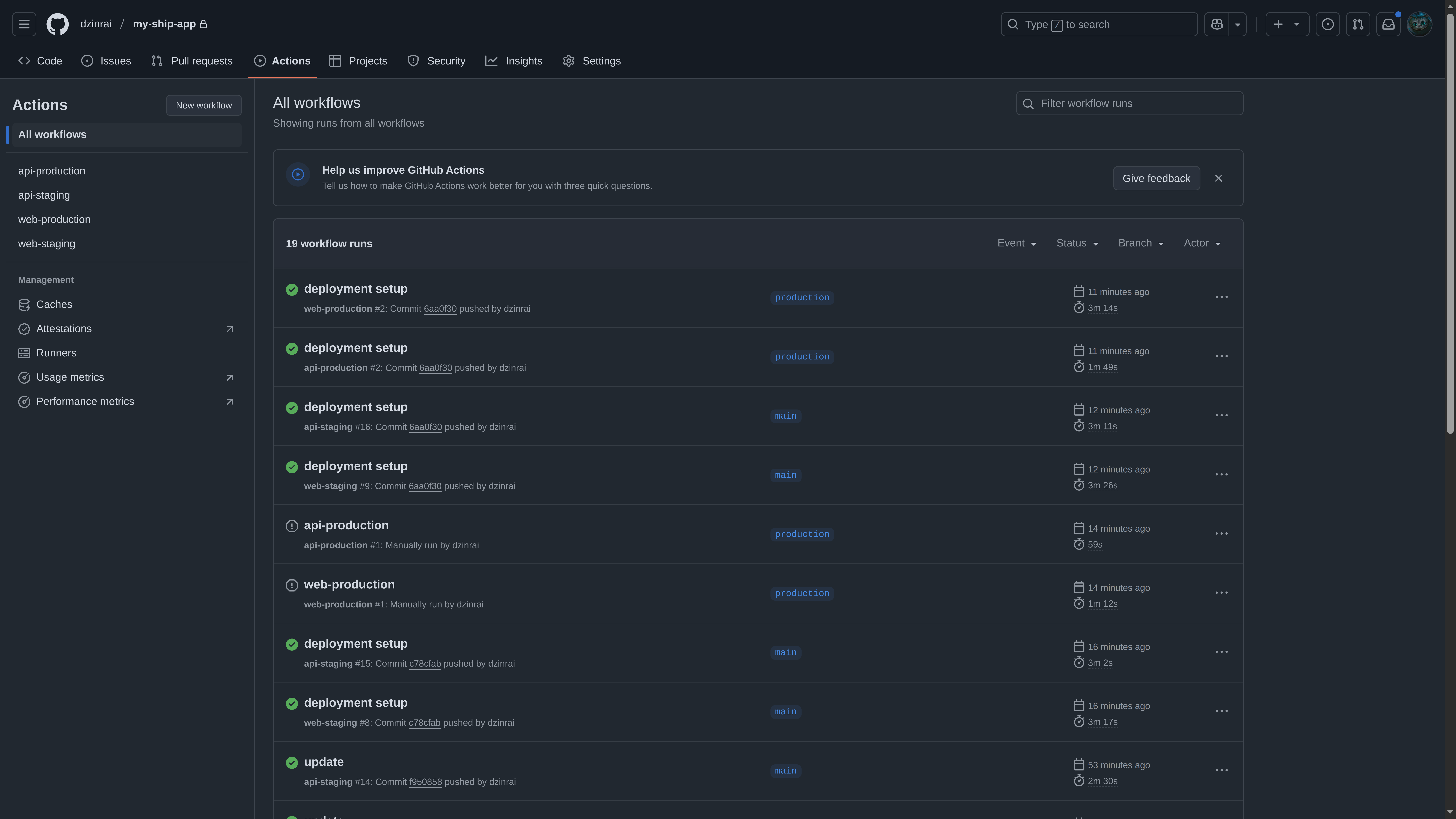

Now commit all changes to GitHub that will trigger deployment, or you can run a workflow manually

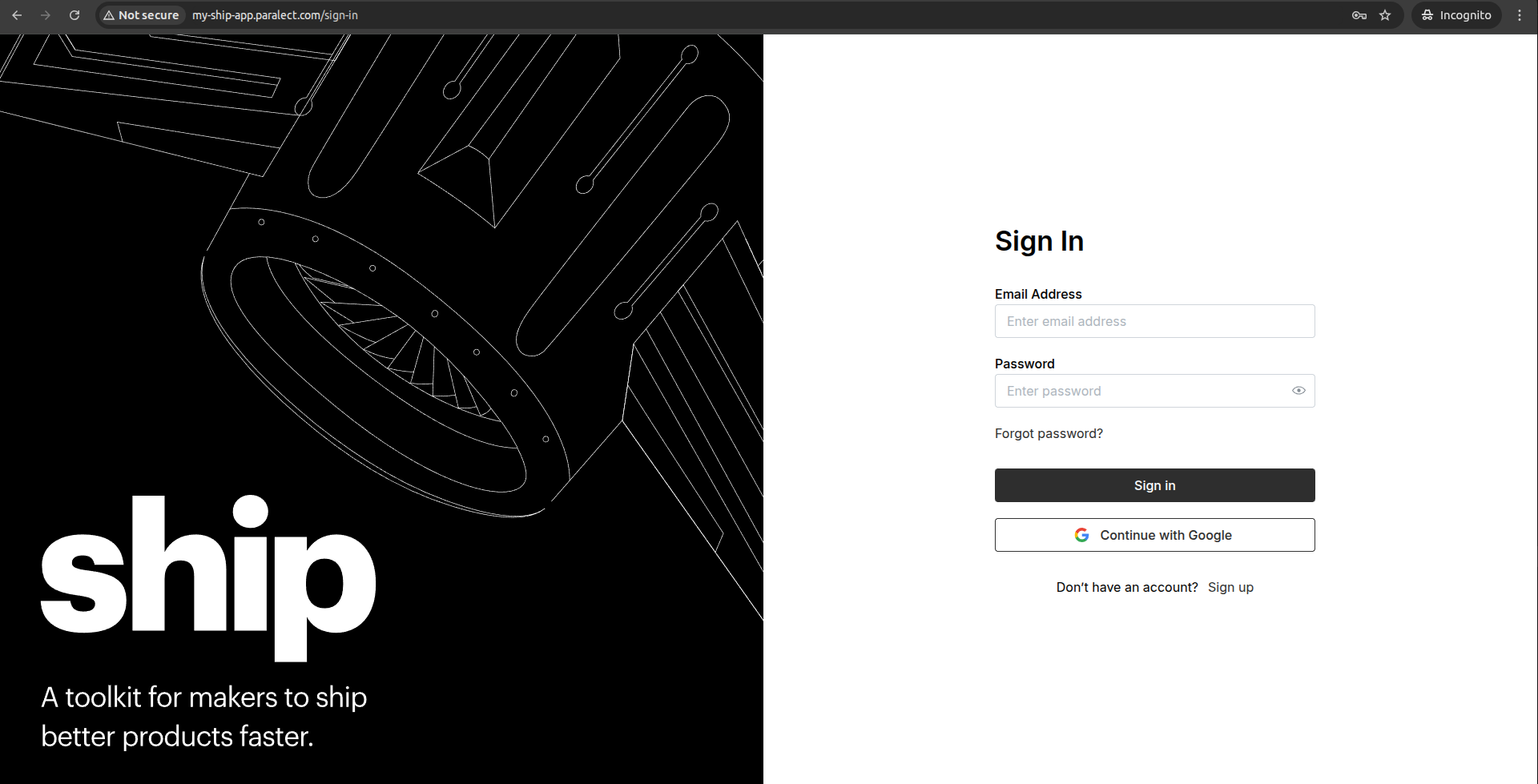

Done! Application deployed and can be accessed by the provided domain.

kubectl get pods -A

NAMESPACE       NAME                                        READY   STATUS      RESTARTS   AGE
ingress-nginx   ingress-nginx-controller-6bdff8c8fd-kwxcn   1/1     Running     0          6h50m
kube-system     cilium-tb8td                                1/1     Running     0          8h
kube-system     cilium-x5w8n                                1/1     Running     0          8h
kube-system     coredns-5679ffb5c8-b7dzj                    1/1     Running     0          8h
kube-system     coredns-5679ffb5c8-d465r                    1/1     Running     0          8h
kube-system     cpc-bridge-proxy-ebpf-2gzfr                 1/1     Running     0          8h
kube-system     cpc-bridge-proxy-ebpf-jknzh                 1/1     Running     0          8h
kube-system     csi-do-node-jcqd2                           2/2     Running     0          8h
kube-system     csi-do-node-rpx6q                           2/2     Running     0          8h
kube-system     do-node-agent-ldhxq                         1/1     Running     0          8h
kube-system     do-node-agent-pdksz                         1/1     Running     0          8h
kube-system     hubble-relay-66f54dcd57-l7xjb               1/1     Running     0          8h
kube-system     hubble-ui-785bdbc45b-6xd57                  2/2     Running     0          8h
kube-system     konnectivity-agent-h79mt                    1/1     Running     0          8h
kube-system     konnectivity-agent-hvv67                    1/1     Running     0          8h
production      api-57d7787d98-cj75s                        1/1     Running     0          2m15s
production      migrator-286bq                              0/1     Completed   0          2m54s
production      scheduler-6c497dfbcc-n6b5l                  1/1     Running     0          2m6s
production      web-54c6674974-lv94b                        1/1     Running     0          71m
redis           redis-master-0                              1/1     Running     0          6h49m
staging         api-689b75c786-97c4l                        1/1     Running     0          71m
staging         scheduler-57b984f6c-zcc44                   1/1     Running     0          71m
staging         web-55bdd955b-chswp                         1/1     Running     0          70m

If something went wrong you can check the workflows logs on GitHub and use kubectl logs, kubectl describe commands.

Setting up Upstash Redis database (recommended)

Upstash Redis Integration

Upstash Redis is a highly available, infinitely scalable Redis-compatible database that provides enterprise-grade features without the operational complexity.

How Ship Uses Redis

Ship leverages Redis for several critical functionalities:

Use Case	Description	Implementation
Real-time Communication	Pub/Sub mechanism for WebSocket functionality	Socket.io Redis Adapter
Rate Limiting	API request throttling and abuse prevention	Redis counters with TTL
Caching	Application data caching for improved performance	Key-value storage with expiration

Redis as a Message Broker: When scaling to multiple server instances, Redis acts as a message broker between Socket.io servers, ensuring real-time messages reach all connected clients regardless of which server they’re connected to.

Setting Up Upstash Redis

Create Your Database

Access Upstash Console

Create New Database

Click Create Database in the upper right corner to open the configuration dialog.

Configure Database Settings

Database Name: Choose a descriptive name for your database (e.g., my-ship-app-production)Primary Region: Select the region closest to your main application deployment for optimal write performance.Read Regions: Choose additional regions where you expect high read traffic for better global performance.

Select Plan & Deploy

Choose your pricing plan based on expected usage and click Create to deploy your database.

Once your database is created, you’ll need the connection string for your application:

Navigate to Connection Info

Go to your database dashboard and find the Connect to your database section.

Copy Connection String

Select the Node tab for the appropriate connection string format
Click Reveal to show the hidden password
Copy the complete Redis URI (format: rediss://username:password@host:port)

Add to Environment Variables through k8sec

Using k8sec, add the Redis connection string to your environment configuration:

k8sec set api-production-secret -n production REDIS_URI=$REDIS_URI

k8sec set api-staging-secret -n staging REDIS_URI=$REDIS_URI

After updating environment variables, restart your API pod using:

kubectl delete pod <pod-name> -n <namespace>

This will trigger Kubernetes to create a new pod with the updated environment variables.

Verify Connection with Redis Insight

Redis Insight is a powerful GUI tool for managing and debugging Redis databases.

Install Redis Insight

Download and install Redis Insight on your local machine.

Add Database Connection

Open Redis Insight
Click Add Database
Paste your Upstash Redis connection string in the Connection URL field
Click Add Database

Explore Your Database

Once connected, you can use Upstash Redis Console to:

Browse keys and data structures
Execute Redis commands directly
Monitor real-time performance metrics
Debug application data storage

Real-time Monitoring: Upstash Redis updates database metrics automatically every 10 seconds, giving you near real-time visibility into your Redis performance and usage.

Getting Started

Ship Components

Plugins

Digital Ocean

Setup project

Container registry

Kubernetes cluster

Personal access token

Accessing cluster from a local machine

Ingress NGINX Controller

DNS and SSL

Managed PostgreSQL

Create the Database

Configure Access

Get the Connection String

Environment variables

API Environment Variables

Environment Variable Details

Setting up Kubernetes Secrets

Web Environment Variables

Configuration Files

Environment Variables Reference

Setting up GitHub Actions CI/CD

Configuring GitHub Actions secrets and variables

Setting up Upstash Redis database (recommended)

Upstash Redis Integration

How Ship Uses Redis

Setting Up Upstash Redis

Create Your Database

Verify Connection with Redis Insight

​Setup project

​Container registry

​Kubernetes cluster

​Personal access token

​Accessing cluster from a local machine

​Ingress NGINX Controller

​DNS and SSL

​Managed PostgreSQL

​Create the Database

​Configure Access

​Get the Connection String

​Environment variables

​API Environment Variables

​Environment Variable Details

​Setting up Kubernetes Secrets

​Web Environment Variables

​Configuration Files

​Environment Variables Reference

​Setting up GitHub Actions CI/CD

​Configuring GitHub Actions secrets and variables

​Setting up Upstash Redis database (recommended)

​Upstash Redis Integration

​How Ship Uses Redis

​Setting Up Upstash Redis

​Create Your Database

​Verify Connection with Redis Insight

Setup project

Container registry

Kubernetes cluster

Personal access token

Accessing cluster from a local machine

Ingress NGINX Controller

DNS and SSL

Managed PostgreSQL

Create the Database

Configure Access

Get the Connection String

Environment variables

API Environment Variables

Environment Variable Details

Setting up Kubernetes Secrets

Web Environment Variables

Configuration Files

Environment Variables Reference

Setting up GitHub Actions CI/CD

Configuring GitHub Actions secrets and variables

Setting up Upstash Redis database (recommended)

Upstash Redis Integration

How Ship Uses Redis

Setting Up Upstash Redis

Create Your Database

Verify Connection with Redis Insight
